• View straight down or at an
angle
• Rotate the view 360º without moving the sample
• High-resolution 1.3 megapixel camera

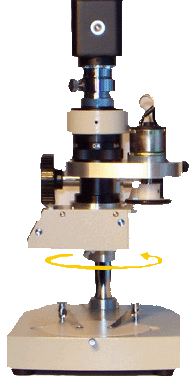

• Software to capture, record, annotate, measure The ZDM-360
Panoramic Digital Video Microscope adds a new dimension to portable
inspection. View the sample form above, or switch to an angled view - up
to 45 degrees from any direction. The variable speed motor drives the
viewing head to produce a 360º panoramic view (which can be recorded) for
more complete inspection and documentation. The 1.3 megapixel color camera
provides four times the resolution of a standard video camera with
excellent color reproduction and high sensitivity over a wide range of
magnifications. The standard zoom lens provides a 9 - 65x magnification
range (other magnification ranges available). A 150 watt halogen lamp with
dual fiber bundles provides ample light to completely illuminate the
sample from all directions. |
ZDM-360 Panoramic
