TA10B
Digital ICs
Testing
• CMOS
• HCMOS
• NMOS
• PMOS
• TTL (LS, ALS, S, FAST, etc.)
• DTL
• HTL
| Parameters |
| Continuity
test |
| Supply
current |
| Functional
test |
| Output
voltage |
| Off
state current |
| Short
circuit current |
| Clamp
voltage |
| Hysteresis,
Delay time |
| On
resistence |
| Delta
Ron |
|
|
 |

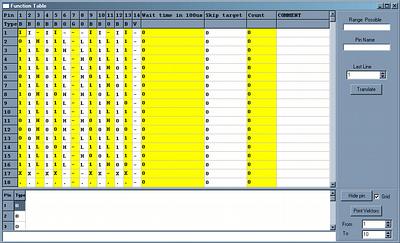

| Function
table |
|
Screenshots
Main control panel for TA10B
|
Select test steps
|
Edit test steps |
|
