TA08B
DAC / ADC
Testing
• A/D Converters
• D/A Converters
• Sample & Hold devices
• Voltage references
| Parameters |
| Continuity
test |
| Supply
current |
| Input
current |
| Leakage
current |
| Output
voltage |
| Clamp
voltage |
| Measure
current |
| Measure
voltage |
| Offset
error |
| Offset
adjust |
| Gain
error |
| Gain
adjust |
| Linearity
(m) |
| Linearity
(d) |
| PS
rejection |
| Slew
rate |
| Setting
time |
| Function
test |
|
Screenshots

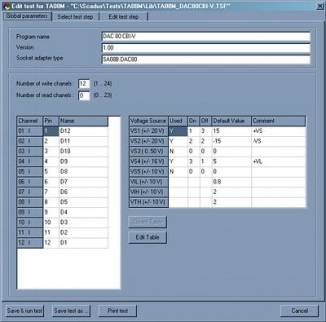

TA08B
Main control panel
Values to be tested are entered to panel columns.

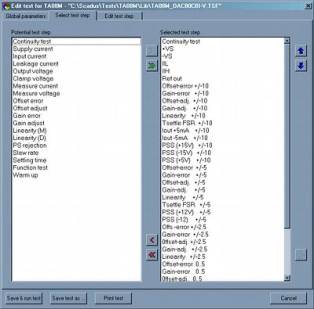

Select
test step

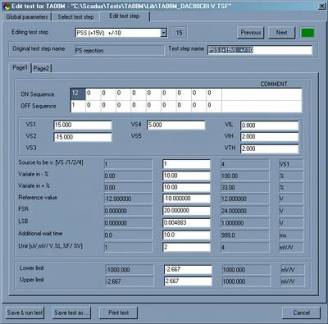

Edit
test step
|
