DIE SORTING SYSTEMS

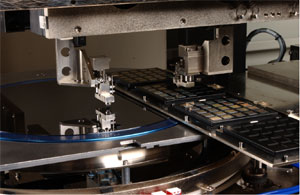

1300 AUTOMATIC HI-SPEED TAPE & REEL DIE SORTING
The DYMATiX 1300 provides the ultimate in speed and capability for dedicated sorting of die from a film-frame into pocket tape. The system can process wafers up to 300mm in diameter and includes die inversion for flip chip applications. The 1300 combines new and existing technologies to create a unique machine optimized for performance.

The 1300 precisely places die and includes the DYMATiX signature programmable plunge-up subsystem. This dual stage plunge-up mechanism facilitates the processing of irregular die shapes and sizes of very small, as well as thin die. The 1300 further positions DYMATiX as the leader in processing the largest range of die sizes and material types, with the shortest changeover times in the industry.

Machines come equipped with robotic film-frame loading, programmable film expansion, 4-position frame rotation for proper die placement, and a robust, multifaceted vision system. Systems are ergonomically designed, provide easy service access, are CE compliant and meet the requirements of Semi S2-0200 and Semi S8.
